RIKEN

Domestic Application

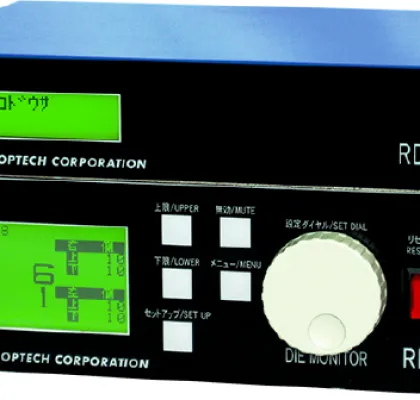

Strain Monitoring Die Protection System
RDM-4

Only to press the setup button, RDM sets the best
monitoring range automatically.
RDM is epochal new product designed and developed
to make precise detection for slug by jamming die
hitherto difficult to detect. The unit checks delicate
changes accurately at a time slug is produced or other
changes occur and stop the press machine promptly.
An analog wave form produced at each stroke of the
press machine is detected by a sensor mounted on the
frame of the press machine and operationally processed
with a built-in microcomputer to ascertain right or wrong.
using with our slug detector MICRON-3, more effective
detection is available.

Domestic Application

Programmable Rotary Cam Switch
PCS-12

To promote automation, laborsaving and producing high
quality products, positioning detection, especially angle
detection is very important, and additionally, high precision,
certainty and high operability are required for producing
high quality products. Our PCS-12 has all requirements.
Installs a sensor on the revolving cam shaft of the press
machine, and decides the reference point, then sets the
operating position dialogically by the LCD monitor.
(It can be set at 1 degree.) By the incorporated
microcomputer, when the revolving cam shaft reaches to
the reference point, PCS-12 outputs ON/OFF signal.

Domestic Application

Multi-Channel Press Malfunction Detector
PMC-3

The Flagship model consolidating functions of
existing detectors.
Corresponds to various applications with the
condensed functions.
PMC-3 is the flagship model of our malfunction
detector, designed with collecting our know-how based
on a long years’ experience and high-end technologies,
and enhancing the further expandability with newly
adding large liquid crystal display unit. PMC-3N
features various new functions and high-operability
fully to meet diversified manufacturing process, and
also promote quality control and improvement of
productivity.
